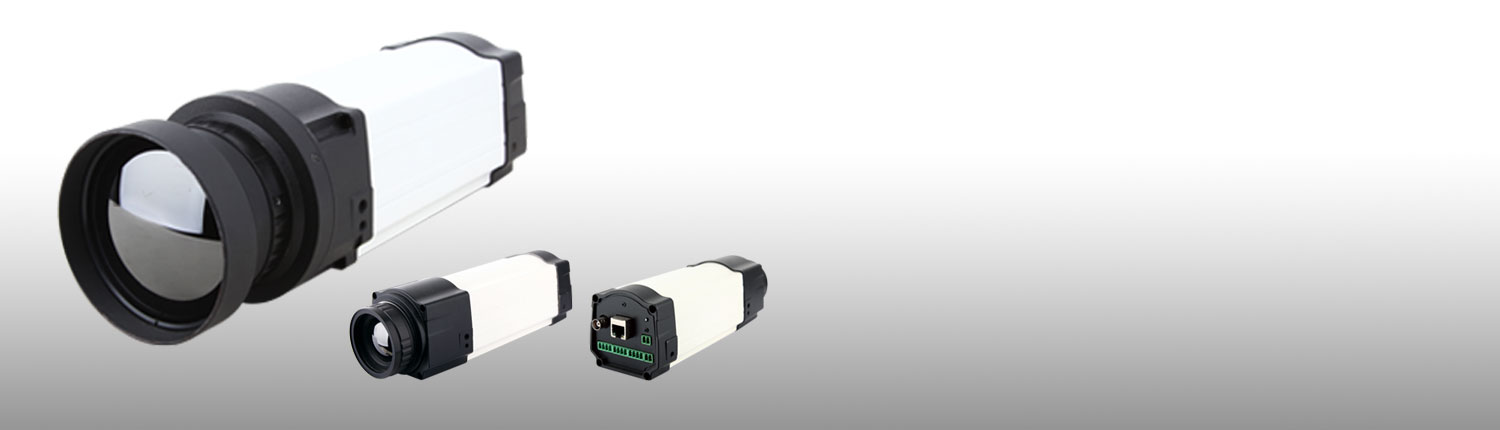

• F325 Online Thermal Imaging Camera

Features

384×288 Pixel Resulotion

Temperature Range: -20+650˚c

H.264 continuous Video. Single image capture BMP

Raw images real-time transfer via client control software, the images are analyzable and measureable.

Description

F325 as an online thermal imaging system has been manufactured by OLIP SYSTEMS INC. F640 is suitable for continues monitoring of important equipment. this online camera has an analog video output beside digital and serial output and delivers the reliable data and HD infrared images.

Technical Specification

Item F325
Detector characteristics Detector Uncooled FPA microbolometer
resolution 384×288
Pitch size 25μm
Spectral range 8~14μm
Thermal Image Focal length 9mm 18mm 37mm
IFOV 2.78mrad 1.39mrad 0.67mrad
FOV/Min Focus 51°×38°/0.1m 25°×19°/0.1m 12°×9°/0.5m
Thermal sensitivity [email protected]
Frame Frequency 50/60HZ
Focus Auto/electronic focus/Preset
Measurement Function Measurement range -20 ℃～+650 ℃
measurement correction Auto/Manual
Measurement accuracy ±2℃ or ±2% of reading, whichever is greater
Measurement mode Up to 4 movable spots. Up to 3movable areas
Color Palette 11 palettes available(including iron red, rainbow, black/white etc)
image adjustment Auto/manual Gain, brightness
Setup function Temperature unit,language,IP address
Emissivity correction Variable from 0.01to 1.0
ambient temperature correction Automatic correction according to user input.
Atmospheric transmission correction automatic correction according to the user input of object distance, relative humidity, ambient temperature
Image storage Raw image capture Raw images real-time transfer via client control software, the images are analyzable and measureable
Image storage H.264 continuous video. Single image capture BMP
Power Supply Power in 10~15V DC
Power consumption ≤7W(@ 25℃normal operation)
Environment Operating temperature -15℃~ +50℃
Storage temperature -40℃~+70℃
Encapsulation IP54
Physical characteristics Weight ≤1Kg(Standard lens)
Size W72mm×H76×D232mm(Standard lens)

Interface

 Power port YES
Analog video output PAL
Digital video output RJ-45 Ethernet output(1000Mbit/S)
Serial Port RS485(optional)
